PowerShell Core – Updating your SQL Server Linux Docker Containers Images

In this post I’ll be covering how to install some needed components, how to commit the changes, and create a revised images for deployment.

In recent event and meetings, I’ve been talking about how to work SQL Server Linux Containers Docker images. As these images get your container up-and-running quickly they lacks some tools that may be useful to complete the SQL Server configuration.

What’s missing?

The SQL Server images contains a small footprint of Linux Ubuntu 16.04 Operating System (OS) and is meant for quick deployment. The OS side the container need to be kept updated regularly.

At the same time, when you starts exploring inside the container, there still missing components you may want to use:

  • vim – for editing text files.
  • ifconfig – to check your network interfaces.
  • ping – to check IP-Address can be reachable across the network.
  • curl – for transfering data.

So, after you pull the docker image, create the container using “docker run …“, and then get to the container Bash session by using “docker exec -it …“. Remember the bash session only get you to the “root” level as there’s no users set on these containers.

## - First time setup: (for "server:2019-CTP2.2-ubuntu" and )
docker run -e 'ACCEPT_EULA=Y' -e 'SA_PASSWORD=$SqlPwd01A' -e "MSSQL_PID=Developer" -p 1433:1433 --name sql2k19_CTP2.3 -d mcr.microsoft.com/mssql/server:2019-CTP2.3-ubuntu;

## - Display all active containers;
docker ps -a

At this point make sure the active container status should be in “Up” status. Now can proceed to update the container.

Installing Missing Components

To have access to the container we use the “docker exec …” command.  This command will allow to get access to the container “root” prompt.

## - Configuring your container:
docker exec -it sql2k19_CTP2.3 bash

The first thing I would suggest to do, execute the following to commands:

## - Updating OS:
apt update

apt upgrade

Notice if you try to execute: vim, ping, ifconfig, and curl are not installed in the container images.

Let’s proceed to install these component by executing the following command:

## - Installing additional components:
apt-get -y install \
curl \
vim \
iputils-ping \
net-tools \
powershell-preview

Also, it’s a good idea to create a Downloads folder in case to install other application(s).

## - Create Downloads folder in root:
mkdir Downloads
chmod 755 Downloads

Notice that PowerShell Core Preview was included with the other missing components.  PowerShell has become a great tool to have in a Linux environment.

PowerShell Core SQLServer Module

Although, this is optional but it doesn’t prevent you to include PowerShell Core Preview 6.2.0-RC1 with the SqlServer module which included the “Invoke-Sqlcmd” use by many administrator.  This is a great module to have in a SQL Server container image.

So, from the “root” prompt in the container open PowerShell Core Preview, then proceed to install the SqlServer module preview version 21.1.18095.

## - Open PowerShell Core:
pwsh-preview

## - Install SqlServer module preview:
Install-Module SQLServer -AllowPreRelease

This completes the essential for using PowerShell to help managing a SQL Server instance(s).

How About Anaconda?

We could install the latest version of Anaconda with Python 3.7 in our SQL Server container image.

## - Change directory to Downloads folder:
cd Downloads

## - Download Anaconda with Python 3.7:
wget https://repo.anaconda.com/archive/Anaconda3-2018.12-Linux-x86_64.sh

## - Install Anaconda with Python 3.7:
bash Anaconda3-2018.12-Linux-x86_64.sh

This will give us the ability to test Python scripts within the container.

Testing installed Components

We need to verify that all previously installed components are working. Go back to the container “root” prompt, and to execute the commands:

ifconfig
ping 127.0.0.1
vim ~/.bashrc
pwsh
sqlcmd

Now, executing “sqlcmd” command line will not work unless you add the path to the executable to the “root” ~/.bashrc file:

## - Need to include the path to SQLCMD command:
echo 'export PATH="$PATH:/opt/mssql-tools/bin"' >> ~/.bashrc

## - Refresh ~/.bashrc:
source ~/.bashrc

## - Run Sqlcmd command:
sqlcmd -L localhost -U sa -P 'sapwd'
> select @@version
> go
> exit

This is a good indication that our *SQL Server container is active. And, now we got all missing components installed.

Now, we need to make sure we don’t lose out changes.

Creating your own SQL Server Docker image

This is an important step so you won’t lose the changes already made to the container.  Below are the brief step to follow:

## - Commit the container changes: (repository name must be lowercase but Tags are OK with uppercase)
## -> docker commit "<Get-Container_ID>" "<Image-name>":"<TAG name>"

docker commit "<Get-Container_ID>" sql2k19_ctp2.3_sandbox:CTP2.3-Version01

## - List images included the committed ones:
docker images

## - Stop Image before the Save step:
docker stop sql2k19_CTP2.3
docker ps -a

## - Save docker updated image:
docker save -o ./Downloads/sql2k19ctp23_sandboxVer01.tar sql2k19_ctp2.3_sandbox

The “docker commit …” command, you’ll provide both the image-name (all lowercase) and a TAG name (uppercase allowed). You can be creative in having an naming conversion for you images repositories.

It’s very important to save images after doing the commit. I found out that having an active container would be useless without an image.  As far as I know, I haven’t found a way to rebuild an image from an existing container if the image was previously removed.

Summary

Hope this brief run down on working with SQL Server Docker container images will get you started with modifying existing images for quick deployment.

One thing to keep in mind!

  • The SQL Server Container memory need to be 4GB minimum.
  • In Windows, if your’re using non-Hyper-V virtualization tools such as Virtualbox, the virtual machine memory need to be change to 4GB.
  • Also, when you are creating images, the virtual machine disk size default is 20GB. This may need to be increase unless you keep cleaning/removing images to make room.

Just layout what you need, commit, save and deploy your docker solution in your environment.

Keep learning about this amazing technology!



Getting the latest Tools for PowerShell SQL Server Automation

You all know how important is to have the tool that can make our life easy do our system administration, and become a hero in our organization. Here’s a startup helper guide to get you going with some PowerShell and SQL Server tools.

What is available for automation!

For script automation we could install either or both version of PowerShell Core: (As of February 19th, 2019)

Here are some important PowerShell Modules to use for SQL Server management scripting:

  • *SQLServer – This module currently can be use on SQL Server 2017 and greater.
  • *DBATools – This a community supported module that will work with SQL Server 2000 and greater.
  • DBAReports – Supports for Windows SQL Server.
  • DBCheck – Support for Windows SQL Server.

*Note: This module is coming popular in cross-platform systems (non-Windows)

All of the above module can be downloaded from the PowerShell Gallery from the PowerShell console using the Install-Module cmdlet.

Install-Module -Name SQLServer -Force -AllowClobber;

Now, when working with older versions of SQL Server (2008->2017), you will find the SQLPS module is loaded during the SQL Server installation.

Just remember, since SQL Server 2017, Microsoft has change the PowerShell SQLPS module to SQLServer module downloadable from the PowerShell Gallery. This module is not available in PowerShell Gallery, only available during the SQL Server installation.

When PowerShell SQL Server Module can’t provide a script?

It won’t hurt to install the SQL Server Management Objects (SMO) library in case you want to be creative and start building your own SQL PowerShell scripts. This library is already available cross-platform, meaning that it will work in Windows, Linux and MacOS environments.

In this case, you can install the SQL Server SMO library “Microsoft.SqlServer.SqlManagementObjects” from the PowerShell Console using the Install-Package cmdlet.

Install-Package -Name Microsoft.SqlServer.SqlManagementObjects -AllowPrereleaseVersions;

Wait! There is more

As you already know, to manage SQL Server in Windows environment, we use the SQL Server Management Studio. But, this
application won’t work cross-platform.

So, the cross-platform option available is Azure Data Studio (February edition):

Don’t forget to include for following extensions:

What about Python?

By now you should already know that Python has been around for many year as cross-platform interpreted object-oriented high-level language. And, its popularity keeps increasing.

I would recommend to take a look at the Anaconda Distribution, and specifically the one with the latest version of Python (v3.7).

Download Anaconda for data science platform:

This installation will include *All* Python packages available to build an application.

And, Python can interact with PowerShell too!

Ah finally Containers!

Yes! Containers has become popular and can’t be ignored. It can be use in both Windows, Linux and any cloud environments. Go ahead to learn how to work and manage Docker containers.

Docker site to Download the Docker CE.

Don’t forget to check Docker Hub to find the latest Docker Container images available for download. And, you will need to create an account before downloading images.  The image below shows how-to search for the SQL Server image.

In Summary

As technology will keep improving, make sure stay up-to-date. This give us the opportunity to improve our job position and be of value for the organization that hire us.

Don’t forget to look for the nearest technology event in your areas, as this is the opportunity to learn for free and gain invaluable knowledge.

Installing MS SQL Server in Ubuntu 18.04

This has been an issue for sometime until now. I found the following link that help me install SQL Server on the latest Ubuntu 18.04:

https://askubuntu.com/questions/1032532/how-do-i-install-ms-sql-for-ubuntu-18-04-lts

But, there are few missing steps which can help ease the burden of errors. At the same time, the information is a little out-dated.

But, it works with the following adjustments.

Please Understand!!  This is NOT approved by Microsoft.  Use this method for Test Only!!

Create Your Installation

The following instructions help you download and get the dpkg package ready for you Ubuntu 18.04 SQL Server installation:

  • Create the folders to extract, and make changes to repackage the dpkg SQL Server installation:
cd ${HOME} && mkdir -p tmp/mssql/newpkg/DEBIAN/ && cd tmp/mssql
  • Download the latest version of SQL Server dpkg to the current folder location: (dpkg SQLServer date: 20-Jun-2018 18:03)
wget https://packages.microsoft.com/ubuntu/16.04/mssql-server-2017/pool/main/m/mssql-server/mssql-server_14.0.3029.16-1_amd64.deb
  • Extract the dpkg package:
dpkg-deb -x mssql-server_14.0.3029.16-1_amd64.deb newpkg/
dpkg-deb -e mssql-server_14.0.3029.16-1_amd64.deb newpkg/DEBIAN/
  • Next step will change the OpenSSL version to avoid failure during SQL Server installation:
sed -i -e 's#openssl (<= 1.1.0)#openssl (<= 1.1.0g-2ubuntu4.1)#g' newpkg/DEBIAN/control
cat newpkg/DEBIAN/control | grep openssl
  • Next step it to Repackage the SQL Server installation:
sudo dpkg-deb -b newpkg/ 18.04-mssql-server_14.0.3029.16-1_amd64.deb

At this stage you could try to install SQL Server, but it might failed.  This is needed in order to check what dependencies are missing. Then, make the necessary dependencies installation.

Additional Steps

As of today, July 5th, I went thru a series of trial-and-error to get my SQL Server running on my Ubuntu 18.04.

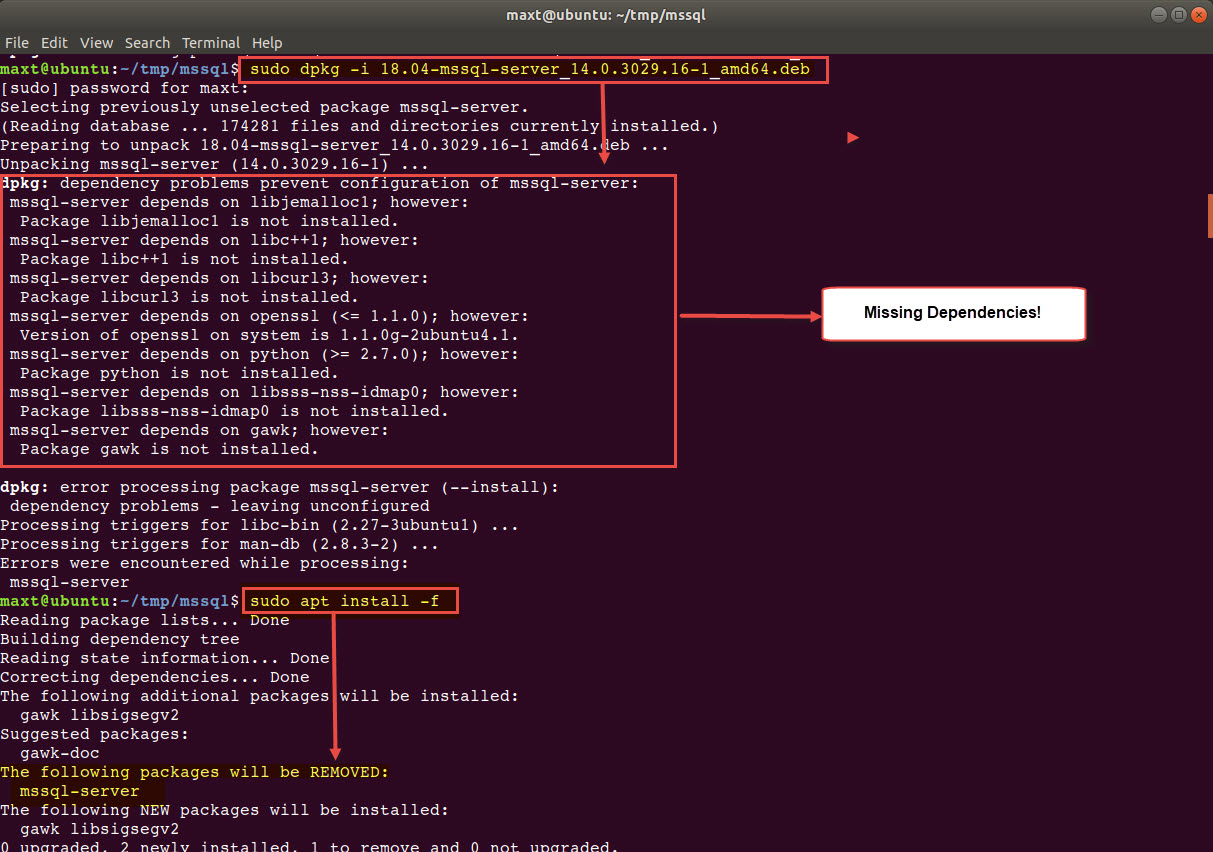

After executing the following command:

sudo dpkg -i 18.04-mssql-server_14.0.3029.16-1_amd64.deb

But, I got errors:

The following is the list of all my missing dependencies on Ubuntu 18.04 for the SQL Server installation:

dpkg: dependency problems prevent configuration of mssql-server:
mssql-server depends on libjemalloc1; however:
Package libjemalloc1 is not installed.
mssql-server depends on libc++1; however:
Package libc++1 is not installed.
mssql-server depends on libcurl3; however:
Package libcurl3 is not installed.
mssql-server depends on openssl (<= 1.1.0); however: Version of openssl on system is 1.1.0g-2ubuntu4.1. mssql-server depends on python (>= 2.7.0); however:
Package python is not installed.
mssql-server depends on libsss-nss-idmap0; however:
Package libsss-nss-idmap0 is not installed.
mssql-server depends on gawk; however:
Package gawk is not installed.

Now, one thing to understand, if you execute the following command:

sudo apt install -f

It will clear/remove SQL Server installation components, but it also try to install some, but not all of the dependencies.

As is shown in the image, only two of the listed dependencies were installed: “gawk“, and “libsigsegv2” (this one might be from another package not for SQLServer).

So, identifying the missing dependencies can alleviate the burden of more fail attempts to install SQLServer.

The following command will install all on the listed failed dependencies, excluding OpenSSL because another version is already installed.

## - Adding the missing dependencies:
sudo apt install python libjemalloc1 libc++1 libcurl3 libsss-nss-idmap0

After all the missing dependencies are installed than I can proceed to rerun the re-package SQL Server installation for my Ubuntu 18.04. By the way, I already took care of the OpenSSL in the “Create Your Installation” step where I change the version number.

About Python Dependency?

Yes! In Ubuntu 18.04, Python version 3.6.5 is the one installed with the OS. So, Python 2.7 is not installed.

Try running the command: python –version, then python3 –version at the Terminal Console.

In order to install SQL Server in Linux, it need Python 2.7 installed in order for the installation to work. This is why I included Python in the “sudo apt install …” command to be installed with the other missing dependencies.

Finally Ready

So, finally all the dependencies have been installed. Now, I can rerun the SQL Server installation:

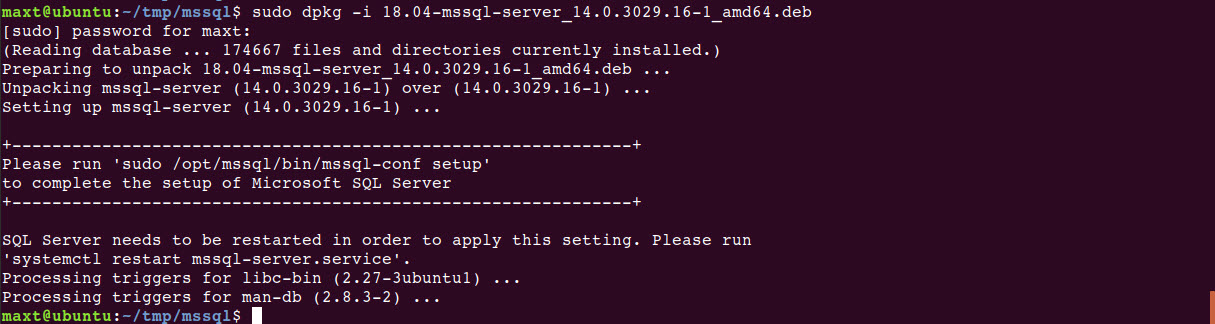

sudo dpkg -i 18.04-mssql-server_14.0.3029.16-1_amd64.deb

This time the installation completes without any error.

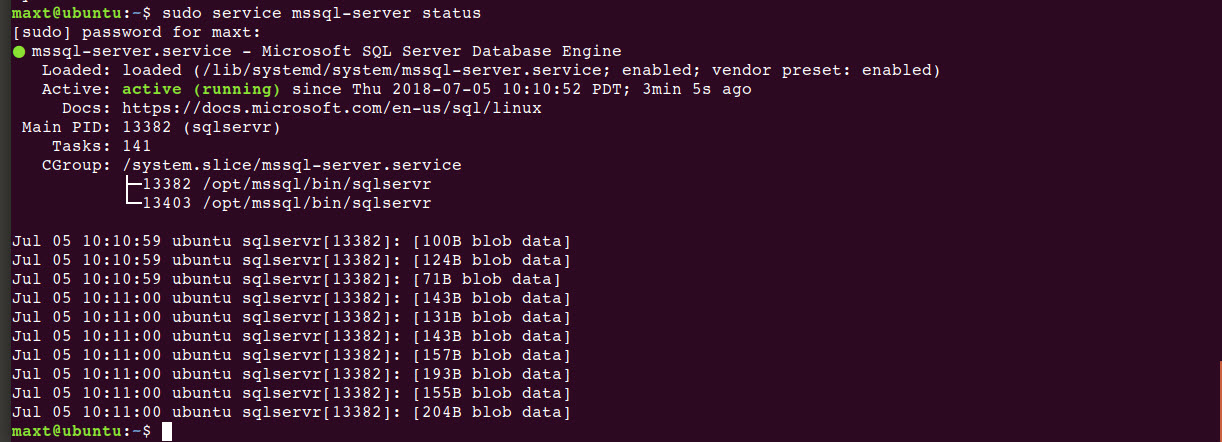

To verify that SQL Server is running, execute to following command:

sudo service mssql-server status

Next, verify from your Windows client and open SQL Server Management Studio to verify that the Ubuntu 18.04 SQL Server is accessible.

What’s Next?

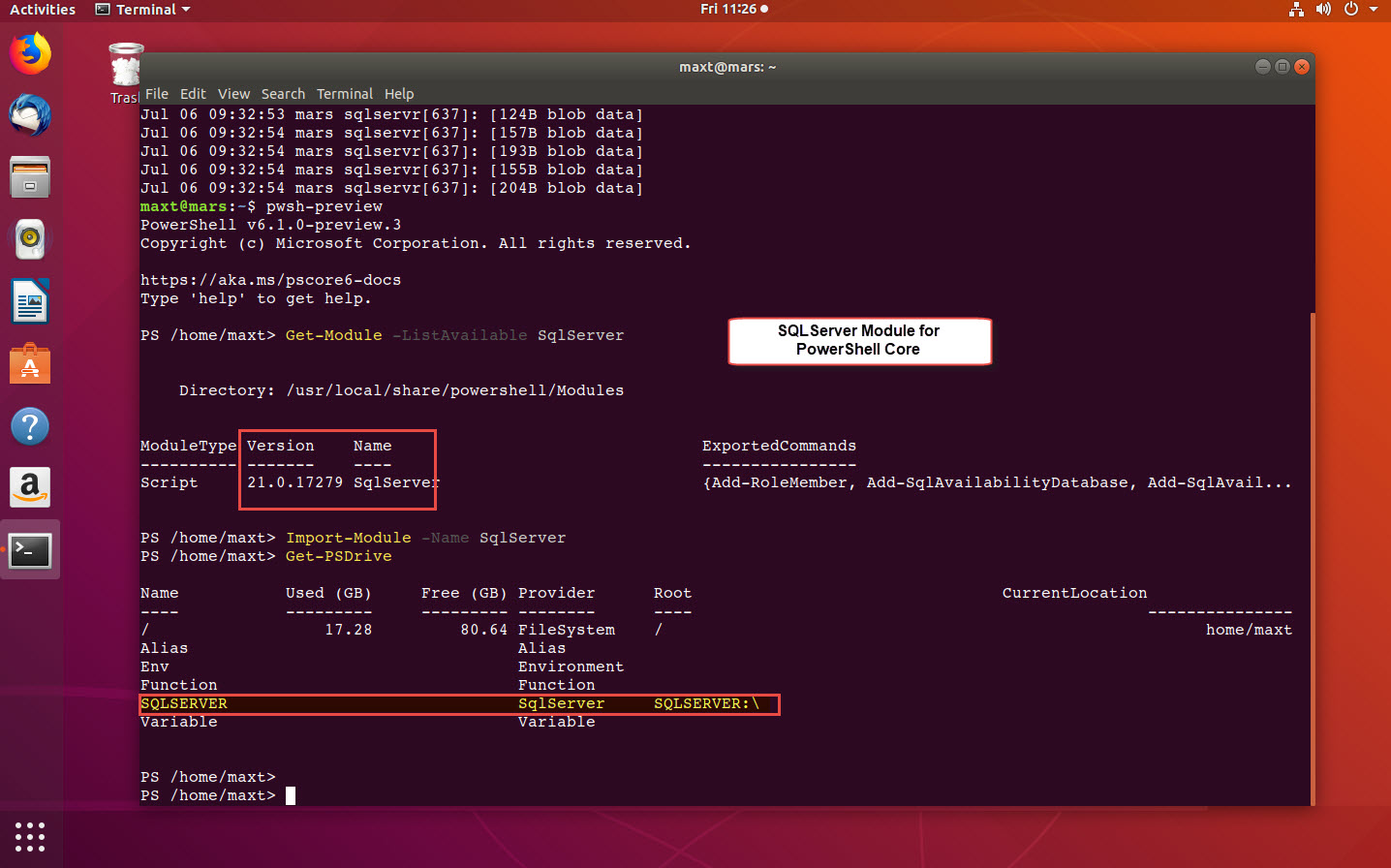

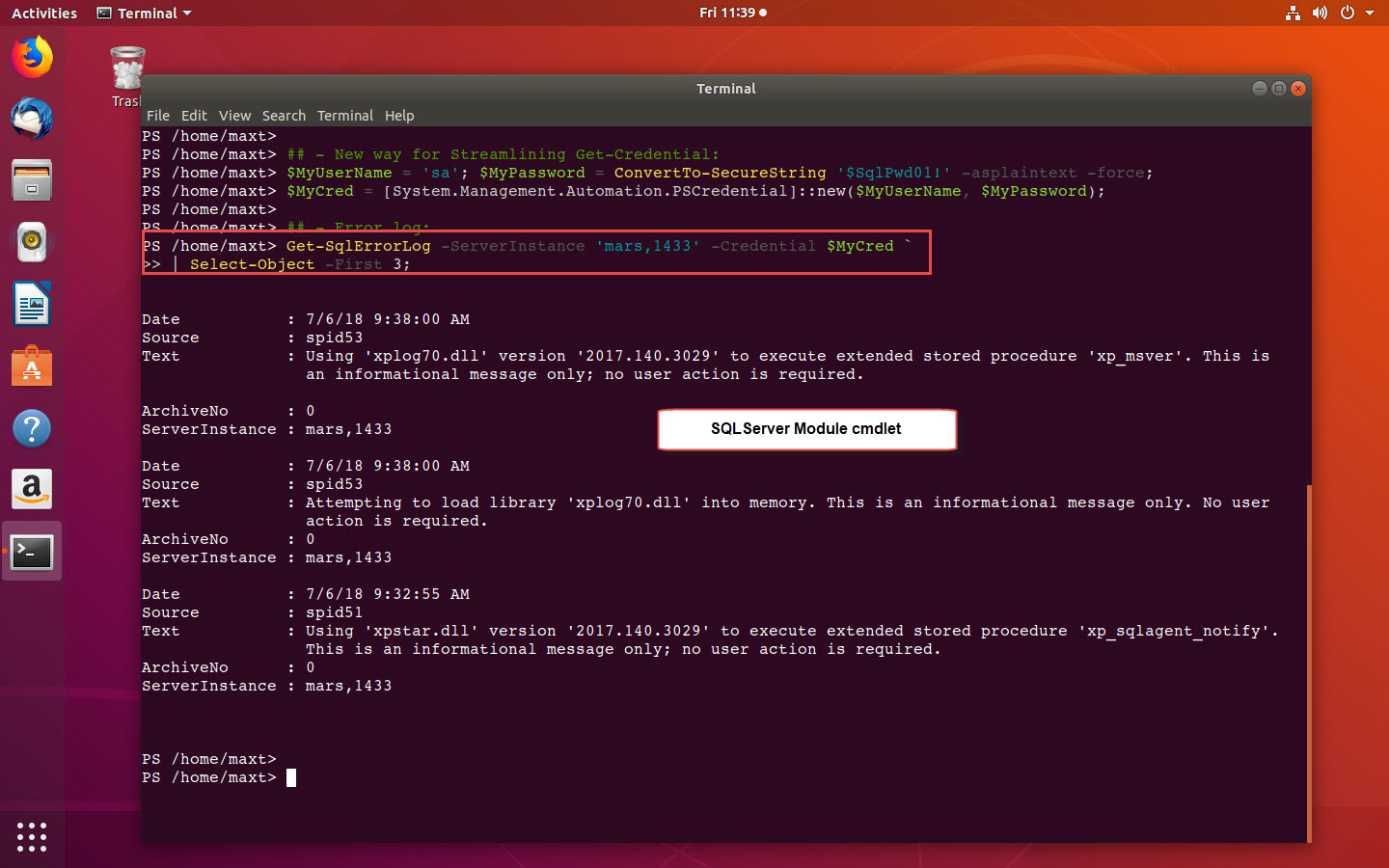

Well, if you got PowerShell Core installed, then get the SQLServer Module and start to play around working with both the available cmdlets and/or start coding SMO (SQL Server Management Object) PowerShell Core scripts.

Be creative!  Check out my previous blog post “PSCore6 – SQLServer Module Expanding The Barrier Cross-Platform” for more information.

In Summary

This is a hacking technique to be able to install SQL Server in Ubuntu 18.04.  This is not supported by Microsoft, but you will be able to make it work. Basically, is a matter of installing all the missing dependencies, and change the package required OpenSSL version number to the one installed in Ubuntu 18.04.  Then, repackaging the SQL Server installation dpkg file will allow the installation to work.

Special Thanks to the contributor in the UbuntuAsk forum, as without it I won’t have figured out, and made it work



Listing SQL Server 2017 Installed Anaconda Packages Using PowerShell

SQL Server 2017 comes with the option to include Python (Anaconda) during SQL Server installation. It will install Anaconda with a small set of python packages for the purpose of creating Data Science solution that sre executed within T-SQL statement(s). Unfortunately, there’s no documentation of what Anaconda packages are installed with SQL Server.

Much Easier with Full Installation

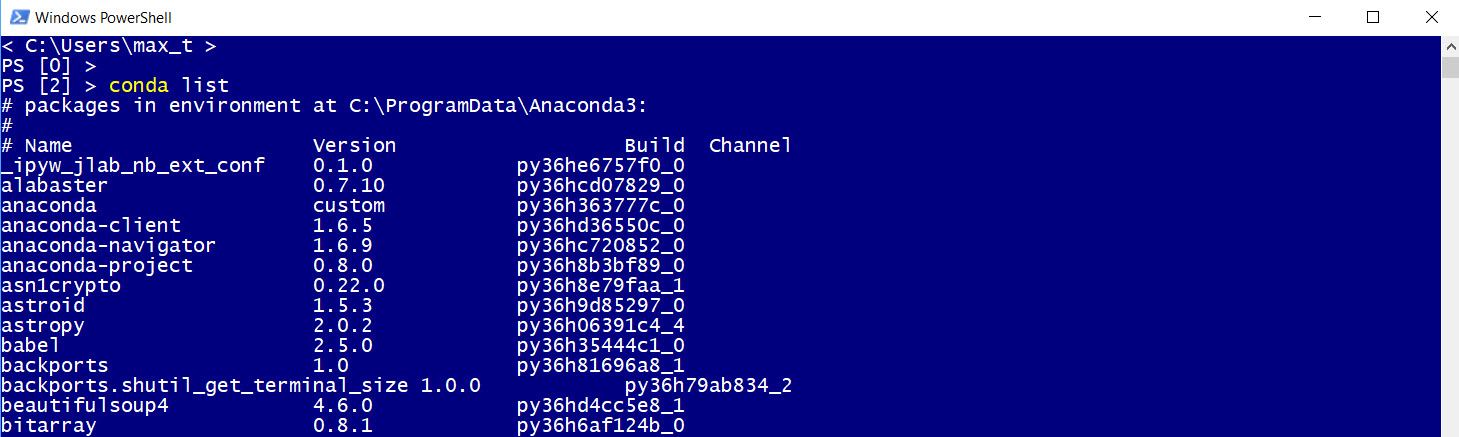

Doing the full Anaconda installation, gives the necessary commands to query what has been installed in your system. This makes it much easier to list all existing installed packages.

In the full installation of Anaconda, done separate from SQL Server, you can use the following command to list all packages installed:

[sourcecode language=”powershell”]
conda info
[/sourcecode]

But, with SQL Server 2017 is a different story.

Where’s my SQL Server Anaconda packages?

These packages are found in the default installation location: “C:\Program Files\Microsoft SQL Server\”YourSQLServerInstanceName”\PYTHON_SERVICES\conda-meta

All packages are of file type *json. Each Anaconda package will named with: the package name, package version, and python version number. But, this makes it hard to view using “File Explorer“.

So, solution to list the SQL Server Anaconda packages in a proper format will be needed.

PowerShell To The Rescue

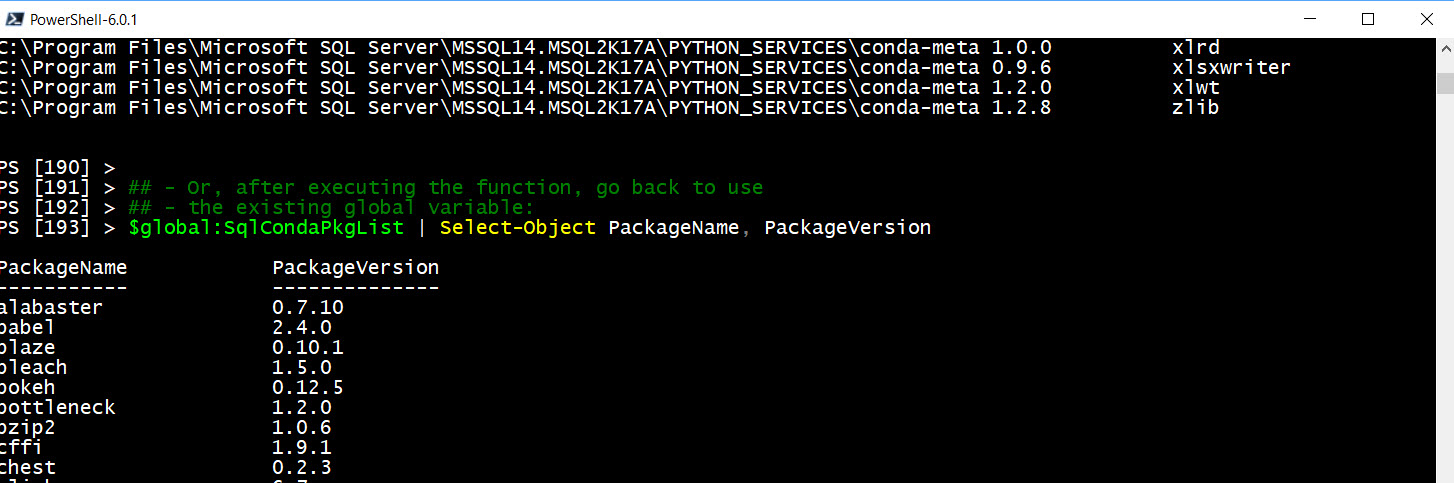

So, here’s a PowerShell function that will list all installed Anaconda packages in SQL Server 2017. This will required to enter some parameters, such as: SQL Server Installation Location, and SQL Server Instance name.

[sourcecode language=”powershell”]
function Get-SQLServerAnacondaPkgList
{
[CmdletBinding()]
Param (
[string]
$SQLServerInstallationDrive = ‘C:’,
[string]
$SQLServerInstanceName
)

$SQLServerInstallationLocation = "$($SQLServerInstallationDrive)\Program Files\Microsoft SQL Server\MSSQL14.$($SQLServerInstanceName)\PYTHON_SERVICES\conda-meta"
$SqlAnaconda = Get-ChildItem $SQLServerInstallationLocation -File *.json;

[array]$global:SqlCondaPkgList = $null;
[array]$global:SqlCondaPkgList = foreach ($Pkg in $SqlAnaconda.name)
{
## – Build PSCustomObject:
[PSCustomObject]$PkgList = New-Object PSObject -Property @{
PackageName = $Pkg.Split(‘-‘)[0];
PackageVersion = $Pkg.Split(‘-‘)[1];
PackageLocation = $SQLServerInstallationLocation;
}; $PkgList;
};
$global:SqlCondaPkgList;
}

## To execute function:
$SQLServerInstallationDrive = ‘C:’
$SQLServerInstanceName = "MSQL2K17A"

Get-SQLServerAnacondaPkgList -SQLServerInstallationDrive $SQLServerInstallationDrive `
-SQLServerInstancename $SQLServerInstanceName;

## – Or, after executing the function, go back to use
## – the existing global variable:
$global:SqlCondaPkgList | Select-Object PackageName, PackageVersion

[/sourcecode]

Bottom line

Executing Anaconda within T-SQL seems only available on Windows version. But, you can still create the Python code and do some testing on Linux.

The total number of packages provided with Microsoft SQL Server 2017 is about 146. Now, in the full version of Anaconda, there is a total of about 217 python packages.

Full listing of all Anaconda Packages installed for SQL Server 2017 (See below):

[sourcecode language=”text”]
PackageName PackageVersion
———– ————–
alabaster 0.7.10
babel 2.4.0
blaze 0.10.1
bleach 1.5.0
bokeh 0.12.5
bottleneck 1.2.0
bzip2 1.0.6
cffi 1.9.1
chest 0.2.3
click 6.7
cloudpickle 0.2.2
colorama 0.3.7
conda 4.3.22
conda env
configobj 5.0.6
console_shortcut 0.1.1
cryptography 1.7.1
curl 7.52.1
cycler 0.10.0
cython 0.25.2
cytoolz 0.8.2
dask 0.14.1
datashape 0.5.4
decorator 4.0.11
dill 0.2.5
docutils 0.13.1
entrypoints 0.2.2
et_xmlfile 1.0.1
flask 0.12.1
flask cors
freetype 2.5.5
h5py 2.7.0
hdf5 1.8.15.1
heapdict 1.0.0
html5lib 0.999
icu 57.1
idna 2.2
imagesize 0.7.1
ipykernel 4.6.0
ipython_genutils 0.2.0
ipython 5.3.0
ipywidgets 6.0.0
itsdangerous 0.24
jdcal 1.3
jinja2 2.9.6
jpeg 9b
jsonschema 2.5.1
jupyter_client 5.0.1
jupyter_console 5.1.0
jupyter_core 4.3.0
jupyter_kernel_gateway 2.0.0
jupyter 1.0.0
libpng 1.6.27
libtiff 4.0.6
llvmlite 0.16.0
locket 0.2.0
lxml 3.7.3
markupsafe 0.23
matplotlib 2.0.0
menuinst 1.4.2
mistune 0.7.4
mkl 2017.0.1
mkl service
mpmath 0.19
multipledispatch 0.4.9
nbconvert 5.1.1
nbformat 4.3.0
networkx 1.11
nltk 3.2.2
notebook 5.0.0
numba 0.31.0
numexpr 2.6.2
numpy 1.12.1
numpydoc 0.6.0
odo 0.5.0
olefile 0.44
openpyxl 2.4.1
openssl 1.0.2k
pandas 0.19.2
pandas datareader
pandasql 0.7.3
pandocfilters 1.4.1
partd 0.3.7
path.py 10.1
pathlib2 2.2.1
patsy 0.4.1
pickleshare 0.7.4
pillow 4.1.0
pip 9.0.1
prompt_toolkit 1.0.14
psutil 5.2.1
py 1.4.33
pyasn1 0.2.3
pycosat 0.6.1
pycparser 2.17
pycrypto 2.6.1
pycurl 7.43.0
pygments 2.2.0
pyodbc 4.0.16
pyopenssl 16.2.0
pyparsing 2.1.4
pyqt 5.6.0
pytables 3.2.2
pytest 3.0.7
python 3.5.2
python dateutil
pytz 2017.2
pywavelets 0.5.2
pywin32 220
pyyaml 3.12
pyzmq 16.0.2
qt 5.6.2
qtconsole 4.3.0
requests 2.13.0
requests file
ruamel_yaml 0.11.14
scikit image
scikit learn
scipy 0.19.0
seaborn 0.7.1
setuptools 27.2.0
simplegeneric 0.8.1
sip 4.18
six 1.10.0
snowballstemmer 1.2.1
sphinx 1.5.4
sqlalchemy 1.1.9
sqlparse 0.1.19
statsmodels 0.8.0
sympy 1.0
testpath 0.3
tk 8.5.18
toolz 0.8.2
tornado 4.4.2
traitlets 4.3.2
unicodecsv 0.14.1
vs2015_runtime 14.0.25123
wcwidth 0.1.7
werkzeug 0.12.1
wheel 0.29.0
widgetsnbextension 2.0.0
win_unicode_console 0.5
xlrd 1.0.0
xlsxwriter 0.9.6
xlwt 1.2.0
zlib 1.2.8
[/sourcecode]

So, there’s plenty of room to learn with Python Data Science and SQL Server 2017.

Be Bold! Learn PowerShell Core!
